Single Mode PE/AT Jacket Aerial Self-Supporting ADSS Fiber Optic Cable
Features
Crush resistance and flexibility,The following measures are taken to ensure the cable watertight
100% cable core filling,Loose tube filling compound
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Single Fiber Reinforced Plastic as the central strength member
Optical Characteristics
| Item | Unit | Specification |
| Fiber Type | G.652D |
|
Mode field diameter
| 1310nm | μm | 9.2±0.4 |
| 1550nm | μm | 10.4±0.8 |
| Cladding diameter | μm | 125.0±1 |
| Cladding non-circularity | % | ≤1.0 |
| Core/cladding concentricity error | μm | ≤0.5 |
| Coating diameter | μm | 245±5 |
| Coating non-Circularity | % | ≤6.0 |
| Coating/cladding concentricity error | μm | ≤12.0 |
| Cable cut-off wavelength | nm | ≤1260 |
|
Attenuation Coefficient
| 1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.22 |
| Proof stress level | kpsi | ≥100 |
Can be installed without shutting off the power.
Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV.
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
Large span lengths and the largest span is over 1000m.
Good performance of tensile strength and temperature.
The design life span is 30 years.
Technical Data
Structure and Technical Specifications ADSS-DJ(50-500m Span)
| Ref.Outer Diameter (mm) | Ref.Weight kg/km) | Rec.DailyMax. Working Tension(kN) | Max Allowable Working Tension [kN) | Break Strength (kN) | Strength Member CSA. (kN/mm2) | Modulusof Elasticity CSA kNmm2)[ | Heat Expansion Coefficient (X10-6/K) | SuitableSpan Meter ABICP |
| PE | AT | |
| 12.5 | 125 | 136 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 | 160 | 100 | 140 | 100 |
| 13.0 | 132 | 142 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 | 230 | 150 | 200 | 150 |
| 13.3 | 137 | 148 | 3.0 | 8 | 20 | 10.35 | 9.45 | 1.3 | 300 | 200 | 290 | 200 |
| 13.6 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 | 370 | 250 | 350 | 250 |
| 13.8 | 147 | 159 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1.0 | 420 | 280 | 400 | 280 |
| 14.5 | 164 | 177 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 | 480 | 320 | 460 | 320 |
| 14.9 | 171 | 185 | 6.75 | 18 | 45 | 22.0 | 16.4 | 0.6 | 570 | 380 | 550 | 380 |
| 15.1 | 179 | 193 | 7.95 | 22 | 53 | 26.4 | 18.0 | 0.3 | 670 | 460 | 650 | 460 |
| 15.5 | 190 | 204 | 9.0 | 26 | |60 | 32.2 | 19.1 | 0.1 | 750 | 530 | 750 | 510 |

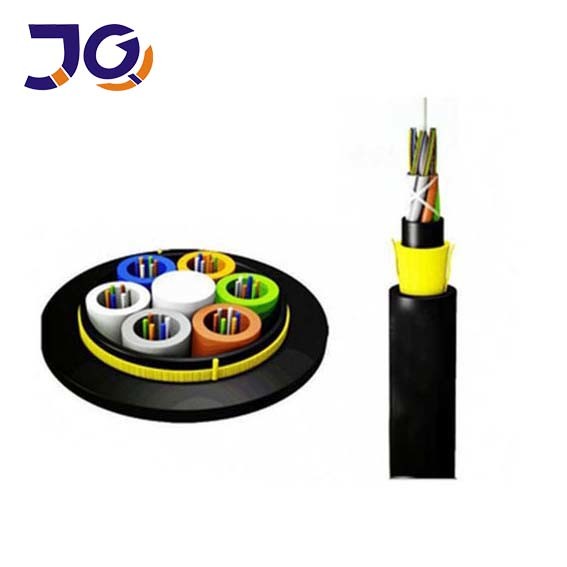

Product Picture
Application
Suitable for Aerial Laying method
Storage / Operating Temperature: -40℃~+70℃
Certifications
Package Detail
Export Wooden drum,Normal shipping length of the cable will be 2km or 3km.
Other length is also available if required by buyer.
Mark:Usually we only attach the test report on the packaging, but your request is available too.
For example:
A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length
FAQ
1. Can I get a sample?
A: Yes, we provide FREE sample and you just need to pay for express freight.
2. Can you accept small order?
A: Yes, small order is available. We support new project of our customers, as we know business is always from small order.
3. What is your delivery time?
A: The general delivery time is 7-20 days after order confirmed. It depends on the order quantity.
4. Can you accept the OEM service?
A: Yes, we welcome the OEMservice. We can print your logo on the product. Any idea from you is available.
