OUTDOOR AERIAL FIBER OPTIC CABLE 6 /12/24/36/48/96/144 CORE ADSS G652D

Brand Name : JQ

Model Number : ADSS

Certification : ISO9001/CE/RoHS

Place of Origin : CHINA

MOQ : 1KM

Delivery Time : 5 days

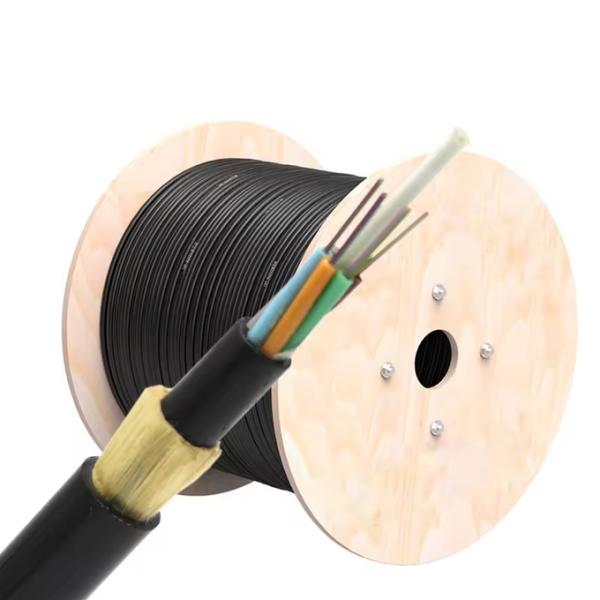

Packaging Details : Wooden package

Contact Now

with its unique structure, good insulation, high temperature resistance and high tensile strength, provides a fast and economical transmission channel for power communication system. Generally speaking,ADSS cable is cheaper than OPGW (optical fiber composite ground ) in many applications, and it is easier to install. It isadvisable to set up ADSS optical cable by using power lines or nearby towers, and even necessary in some places. The main uses of ADSS optical cable are as follows:

OUTDOOR AERIAL FIBER OPTIC CABLE 6 /12/24/36/48/96/144 CORE ADSS G652D

Advantage:

1.The lifespan is over 30 years
2.Large span with the largest span of over 1000m
3.Reliable performance of moistureproof and waterproof

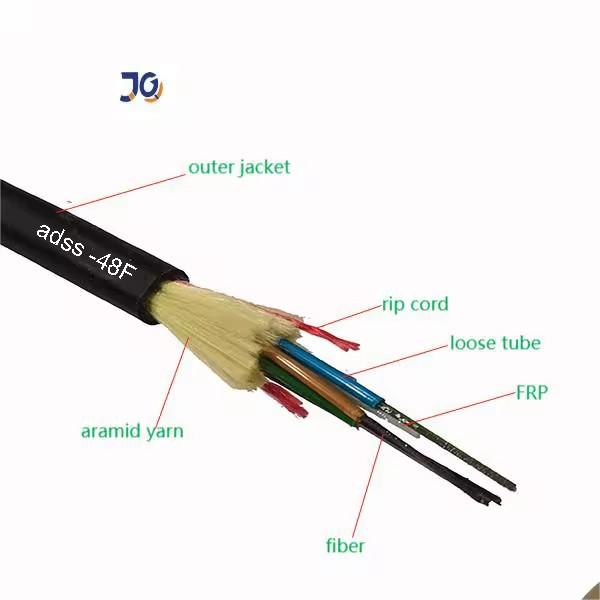

4.Central strength member FRP gives high tensile strength
5.PE or AT sheath ensures safety of cable in high voltage environment
6.All-dielectric structure and light weight provide easy installation and good electromagnetic resistance.

Applications	---Outdoor aerial applications
	---Low voltage transmission system(≤12 kV)
	---Railway & Telecommunication pole route
	---Subscriber & Local Area Network
	---Voice, data, video & imaging system

OUTDOOR AERIAL FIBER OPTIC CABLE 6 /12/24/36/48/96/144 CORE ADSS G652D

Specification

Specifications and technical parameters
Span (m)	100~300	300~500	500~650	650~800	800~900	900~1000
OD (mm)	14.0	15.0	15.5	16.0	16.5	17.2
Weight(kg/km)	165	185	200	210	225	235
Tensile strength (N)	20500	46500	61500	75500	92000	11300
Maximum tension (N)	6800	15500	20500	25100	30500	37600
Minimum static bending radius (nm)	10D
Minimum dynamic bending radius (nm)	30D
Maximum field voltage (kV)	25
Standard initial sag (%)	1~3
Operating temperature (℃)	-40℃ ~ +70℃
