Mine Flame Retardant Duct Fiber Optic Cable MGXTSV

Name: Mine Flame Retardant Duct Fiber Optic Cable MGXTSV
Brand: JQ/OEM
Price: 1 USD

Wholesale Mine Flame Retardant Duct Fiber Optic Cable MGXTSV from china suppliers

Brand Name : JQ/OEM

Model Number : MGXTSV

Certification : ISO9001 ROHS CE-EMC FCC SDOC

Place of Origin : Guangzhou China

MOQ : 1km

Payment Terms : L/C, T/T, Western Union

Supply Ability : 4500KM Per Month

Delivery Time : 3-5dyas

Packaging Details : 1/2/3/4/5 km in one wooden drum

Jacket material : Flame-Retardant LSZH

Fiber count : 2-24 core

Structure : Unit Tube

Product name : Outdoor Optic Fiber Cable

Fiber type : YOFC or as request

Application : Aerial,Duct

Color : Blue

Module : MGXTSV-12B1

Contact Now

Mine Flame-Retardant Fiber Optic Cable MGXTSV

Item Name	MGXTSV Fiber Optic Cable
Place of Origin	Guangdong,China
Model Number	MGTSV
Brand Name	JQ
Fiber Type	Single mode ITU-T G652D
Fiber No.	2-24 cores
Strength Member	Central Steel Wire
Material of Jacket	Flame-retardant Sheath
Cable Structure	Unit Tube
Certificate	ISO9001/CE/RoHS/CE
Storing Temperature	-40℃ to +70℃
Application	Duct/Aerial

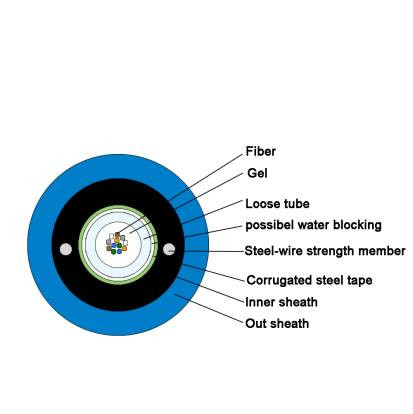

Mine Flame Retardant Duct Fiber Optic Cable MGXTSV

Features
1.Good flame retardant performance.
2.High strength loose tube that is hydrolysis resistant.
3.Double sheathes and single armor providing excellent crush resistance, water proof, and avoiding rat bite.
4.Loose tube wrapped by non-weaven tape has the water blocking ability.
5.Special tube filling compound ensure a critical protection of fiber.
6.Blue PVC or LSZH jacket: Flame retardant, the blue color is easy to identify.
7.Crush resistance and flexibility.

Optical Characteristics

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

Technical Parameters

Fiber
Count

Cable
Diameter(mm)

Cable Weight
kg/km)

Tensile Strength
Long/Short
Term (N)

Crush Resistance
Long/Short
Term (N/100mm)

Bending

Radius Static/Dynamic
mm)

2~12

1000/3000

10D/20D

14~24

1000/3000

10D/20D

Samples show

Mine Flame Retardant Duct Fiber Optic Cable MGXTSV

Application

Suitable for Mine Duct / Aerial

Storage / Operating Temperature: -40℃~+70℃

Packing&Delivery

1/2/3/4/5 km in one wooden drum,deliver days:5-8work days

Mine Flame Retardant Duct Fiber Optic Cable MGXTSV

Product Tags:

MGXTSV Duct Fiber Optic Cable

SDOC Duct Fiber Optic Cable

LSZH Fiber Optic Wire

Mine Flame Retardant Duct Fiber Optic Cable MGXTSV Images
