Aramid yarn Single jacket Double Jacket Multi Cores ADSS Fiber Optic Cable With HDPE
ADSS destricption
ADSS stands for All Die-Electric Self Supporting cable. It is a kind of fiber optic cable that can support itself between structures without the use of conductive metal parts.
With a maximum of 144 fibers, ADSS cables can support both single mode and multimode fibers. From pole-to-building to town-to-town deployments,
ADSS fiber optic cable is designed for duct applications in local and outside plant aerial and campus network loop topologies. A full transmission circuit architecture
with high-reliability performance is provided by the cabling system, which includes cables, suspension, dead-end, and termination enclosures
Characteristics
· Can be installed without shutting off the power
· Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV
· Light weight and small diameter reducing the load caused by ice and wind and the load on towers
and backprops
· Large span lengths and the largest span is over 1000m
· Good performance of tensile strength and temperature
· The design life span is 30 years
Application of Fiber Optic Cable
1. LAN, WAN and Metro Networks
2. FTTH project & FTTX Deployments
3. CATV System
4. GPON, EPON
5. Fiber Optic Test Equipment
6. Data-base Transmit Broadband Net
- Telecommunication networks
- Data centers
- 40G to 10G transition
- CATV;
- Active device termination;
- Metro;
- Local Area Networks;
- Data processing networks
- Test equipment;
- Premise installation;
- Wide Area Networks
Structure and Technical Specifications
1. ADSS single jacket
| fiber count | structure | fiber per tube | losse tube diameter (MM) | FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer
Diameter
(mm) | Ref. Weight
(kg/km) |
| PE Jacket | AT Jacket |
| 4 | 1+6 | 4 | 1.85 | 2.0/2.0 | 1.7±0.1 | 9.8 | 83 | 93 |
| 6 | 1+6 | 6 | 1.85 | 2.0/2.0 | 1.7±0.1 | 9.8 | 83 | 93 |
| 8 | 1+6 | 4 | 1.85 | 2.0/2.0 | 1.7±0.1 | 9.8 | 83 | 93 |
| 12 | 1+6 | 6 | 1.85 | 2.0/2.0 | 1.7±0.1 | 9.8 | 83 | 93 |
| 24 | 1+6 | 6 | 2.0 | 2.0/2.0 | 1.7±0.1 | 9.8 | 86 | 96 |
| 48 | 1+6 | 12 | 2.0 | 2.0/2.0 | 1.7±0.1 | 10.0 | 89 | 99 |
| 72 | 1+6 | 12 | 2.2 | 2.0/2.0 | 1.7±0.1 | 10.5 | 99 | 109 |
| 96 | 1+8 | 12 | 2.2 | 2.0/3.4 | 1.7±0.1 | 12.0 | 124 | 136 |
| 144 | 1+12 | 12 | 2.2 | 3.0/7.2 | 1.7±0.1 | 15.2 | 176 | 189 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
2. ADSS double jacket
| fiber count | structure | fiber per tube | losse tube diameter (MM) | FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer
Diameter
(mm) | Ref. Weight
(kg/km) |
| PE Jacket | AT Jacket |
| 4 | 1+6 | 4 | 1.85 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 6 | 1+6 | 6 | 1.85 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 8 | 1+6 | 4 | 1.85 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 12 | 1+6 | 6 | 1.85 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 24 | 1+6 | 6 | 2.0 | 2.0/2.0 | 1.7±0.1 | 12.0 | 128 | 138 |
| 48 | 1+6 | 12 | 2.0 | 2.0/2.0 | 1.7±0.1 | 12.5 | 130 | 140 |
| 72 | 1+6 | 12 | 2.2 | 2.0/2.0 | 1.7±0.1 | 13.2 | 145 | 155 |
| 96 | 1+8 | 12 | 2.2 | 2.0/3.4 | 1.7±0.1 | 14.5 | 185 | 195 |
| 144 | 1+12 | 12 | 2.2 | 3.0/7.2 | 1.7±0.1 | 16.5 | 212 | 228 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
| Fiber type | Attenuation (+20℃) | Bandwidth | Optical cable cut-off wavelength |
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm |
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | ---
|
Details picture shows

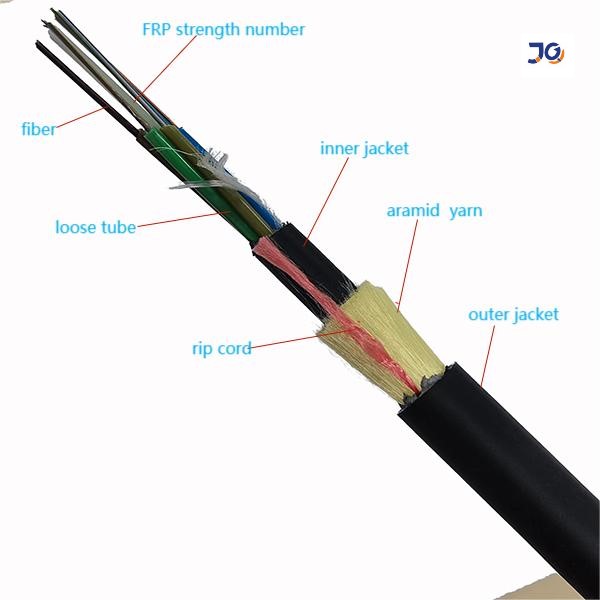

single jacket ADSS fiber cable
double jacket ADSS fiber optic cable
