Fiber Optic G652D

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	mm	9.2±0.4
	1550nm	mm	10.4±0.8
Cladding diameter		mm	125.0±1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		mm	≤0.5
Coating diameter		mm	245±5
Coating non-Circularity		%	≤6.0
Coating/cladding concentricity error		mm	≤12.0
Cable cut-off wavelength		nm	≤1260
Attenuation Coefficient	1310nm	dB/km	≤0.36
	1550nm	dB/km	≤ 0.22
Proof stress level		kpsi	≥100

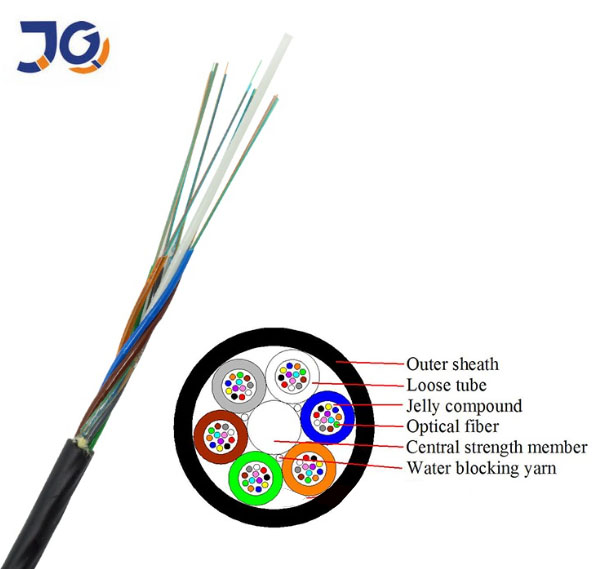

Cable Structural Parameters:

Cores	Cores/tube	FRP diameter (mm)	Sheath thickness (mm)	Approx. overall diameter (mm)	Approx. weight (kg/km)
12	6	1.5	0.5±0.1	5.6	24
24	6	1.5	0.5±0.1	5.6	24
48	12	1.5	0.5±0.1	5.6	24
96	12	1.5	0.5±0.1	6.6	38

Certification:

Company profile:

Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export license. Our corporation is a professional manufacturer of fiber optic cable for 12years, with ISO9001, FCC, ROHS and CE certificates. We provide OEM/ODM or design any structure of fiber optic cable for you. The main products of our company are optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America,Mideast and Southeast Asia.Africa etc

Exhibition:

FAQ:

1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.

3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc


4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.

5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

6.Can you supply customized products and logo?
A:Yes. We supply OEM/ODM service.


7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
